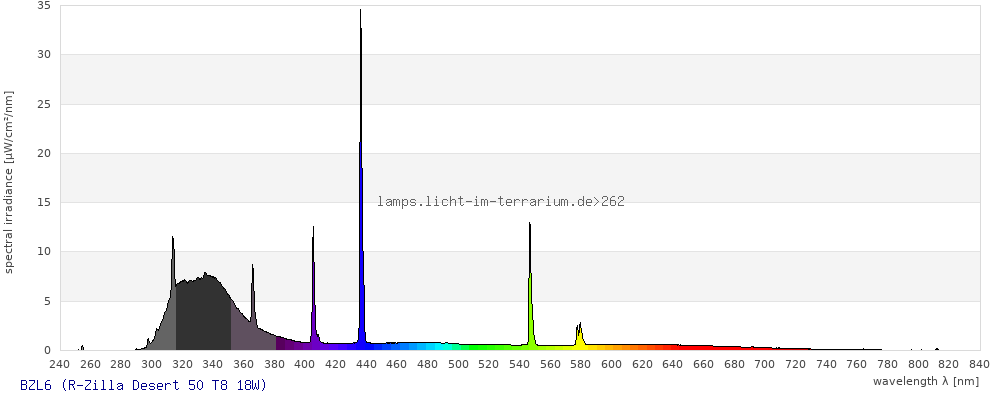

Spectrum #262 BZL6 (R-Zilla Desert 50 T8 18W) Edit
Delete(1) Raw Measurement
| Lampid | BZL6 |
|---|---|
| Spectrometer | USB2000+ |
| Originator | Frances Baines |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | - no reflector - |
| Distance | 10 |
| Age | 105 |
created by Maren, 11.06.2010; last updated by Sarina Wunderlich, 27.02.2011
Description

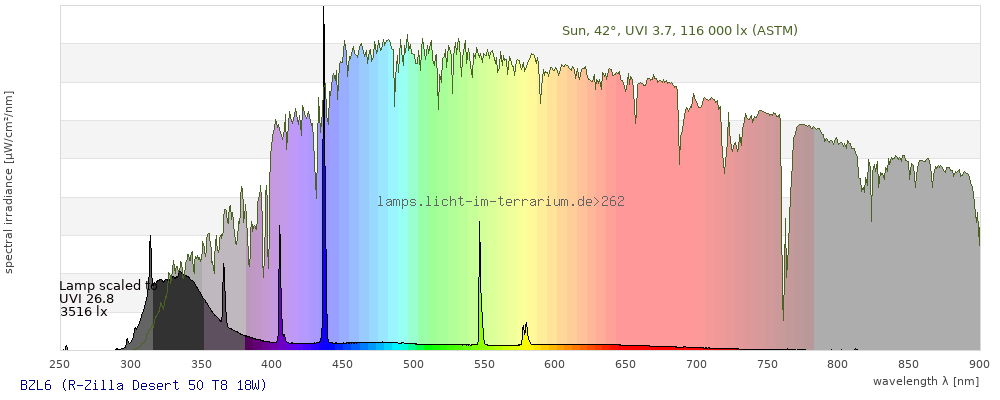

(2) Comparison of full spectrum to sunlight
The spectrum is compared to the ASTM spectrum. The measured spectrum is scaled to a lux or UVI value that seems to "make sense" to the database. This can go wrong, depending on the quality and range of the data.
(3) Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

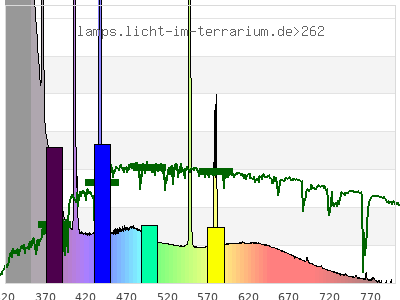

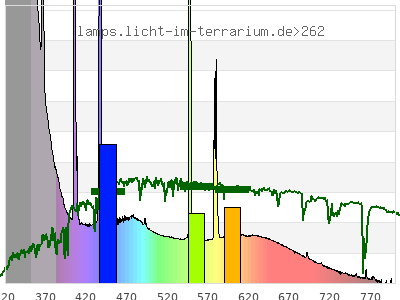

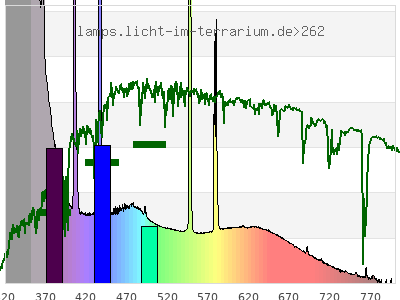

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (ASTM spectrum).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.27 ; 0.25 ) | ( 0.17 ; 0.42 ) | ( 0.14 ; 0.15 ; 0.36 ) |
| CCT | 21000 Kelvin | 23000 Kelvin | 28000 Kelvin |
| distance | 0.11 | 0.09 | |
| colour space | 3-D-graph not implemented yet |

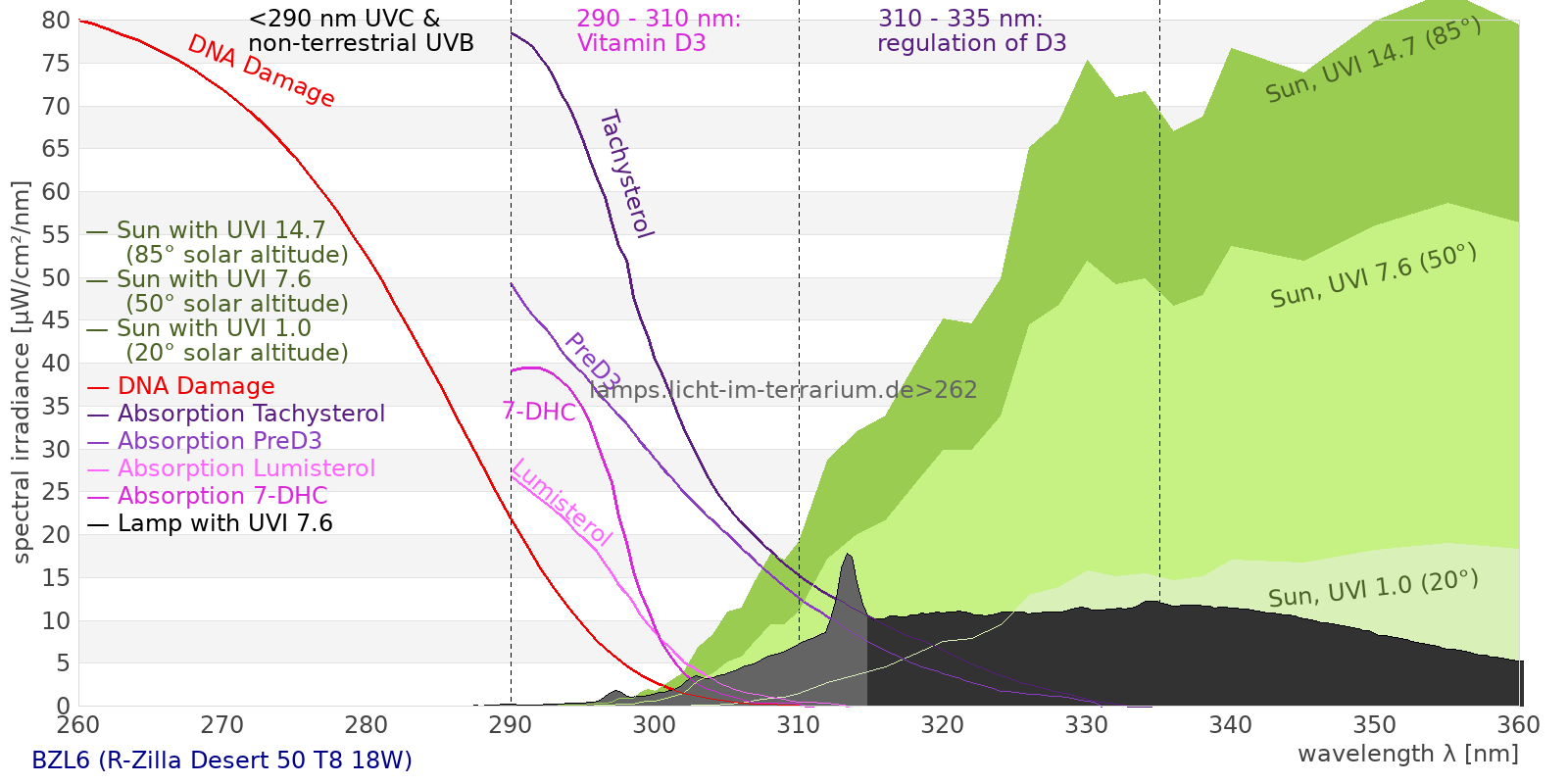

(4) Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the readings of two solarmeters 6.2 (UVB) and 6.5 (UV index) has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
(5) Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
(5a) Ranges
total ( 0 nm - 0 nm) 746 µW/cm² = 7.46 W/m² UVC ( 0 nm - 280 nm) 0.606 µW/cm² = 0.00606 W/m² non-terrestrial ( 0 nm - 290 nm) 0.821 µW/cm² = 0.00821 W/m² total2 ( 250 nm - 880 nm) 746 µW/cm² = 7.46 W/m² UVB (EU) ( 280 nm - 315 nm) 69.5 µW/cm² = 0.695 W/m² UVB (US) ( 280 nm - 320 nm) 105 µW/cm² = 1.05 W/m² UVA+B ( 280 nm - 380 nm) 416 µW/cm² = 4.16 W/m² Solar UVB ( 290 nm - 315 nm) 69.3 µW/cm² = 0.693 W/m² UVA D3 regulating ( 315 nm - 335 nm) 143 µW/cm² = 1.43 W/m² UVA (EU) ( 315 nm - 380 nm) 347 µW/cm² = 3.47 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 147 µW/cm² = 1.47 W/m² UVA (US) ( 320 nm - 380 nm) 311 µW/cm² = 3.11 W/m² UVA1 (variant) ( 335 nm - 380 nm) 204 µW/cm² = 2.04 W/m² UVA1 (medical) ( 340 nm - 400 nm) 187 µW/cm² = 1.87 W/m² vis. UVA ( 350 nm - 380 nm) 99.6 µW/cm² = 0.996 W/m² VIS Rep3 ( 350 nm - 600 nm) 369 µW/cm² = 3.69 W/m² VIS Rep4 ( 350 nm - 700 nm) 418 µW/cm² = 4.18 W/m² purple ( 380 nm - 420 nm) 58.7 µW/cm² = 0.587 W/m² VIS ( 380 nm - 780 nm) 329 µW/cm² = 3.29 W/m² VIS2 ( 400 nm - 680 nm) 290 µW/cm² = 2.9 W/m² PAR ( 400 nm - 700 nm) 296 µW/cm² = 2.96 W/m² tmp ( 400 nm - 1100 nm) 308 µW/cm² = 3.08 W/m² blue ( 420 nm - 490 nm) 115 µW/cm² = 1.15 W/m² green ( 490 nm - 575 nm) 73.9 µW/cm² = 0.739 W/m² yellow ( 575 nm - 585 nm) 12.8 µW/cm² = 0.128 W/m² orange ( 585 nm - 650 nm) 38 µW/cm² = 0.38 W/m² red ( 650 nm - 780 nm) 30.9 µW/cm² = 0.309 W/m² IR2 ( 655 nm - 685 nm) 12.8 µW/cm² = 0.128 W/m² IRA ( 700 nm - 1400 nm) 11.1 µW/cm² = 0.111 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
(5b) Actionspectra
Erythema 5.15 UV-Index Pyrimidine dimerization of DNA 42.5 µW/cm² Photoceratitis 7.73 µW/cm² Photoconjunctivitis 0.76 µW/cm² DNA Damage 1.22 Vitamin D3 20.4 µW/cm² Photosynthesis 219 µW/cm² Luminosity 676 lx Human L-Cone 98.9 µW/cm² Human M-Cone 88.4 µW/cm² Human S-Cone 104 µW/cm² CIE X 101 µW/cm² CIE Y 93.1 µW/cm² CIE Z 186 µW/cm² PAR PPFD 14.5 µmol/m²/s Extinction preD3 125 e-3*m²/mol Extinction Tachysterol 431 e-3*m²/mol Exctincition PreD3 62500 m²/mol Extinction Lumisterol 25.9 m²/mol Exctincition Tachysterol 603000 m²/mol Extinction 7DHC 25.6 m²/mol L-Cone 80.5 µW/cm² M-Cone 83.3 µW/cm² S-Cone 200 µW/cm² U-Cone 197 µW/cm² UVR - ICNIRP 2004 4.53 Rel Biol Eff Melatonin Supression 125 µW/cm² Blue Light Hazard 122 µW/cm² (180 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 22.5 µW/cm² Lumen Reptil 1100 "pseudo-lx" Vitamin D3 Degradation 20.7 µW/cm² Actinic UV 4.48 µW/cm² (66.2 mW/klm) Exctincition Lumisterol 34100 m²/mol Exctincition 7DHC 31400 m²/mol Exctincition Toxisterols 13800 m²/mol
(5c) Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 123 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 5.84 Leybold UVB 89.8 µW/cm² Leybold UVA 223 µW/cm² Leybold UVC 0.617 µW/cm² DeltaOhm UVB 195 µW/cm² DeltaOhm UVC 25.4 µW/cm² Vernier UVB 34.1 µW/cm² Vernier UVA 252 µW/cm² Gröbel UVA 292 µW/cm² Gröbel UVB 47.9 µW/cm² Gröbel UVC 0.516 µW/cm² Luxmeter 704 lx Solarmeter 6.4 (D3) 18.2 IU/min UVX-31 213 µW/cm² IL UVB 0.0521 µW/cm² IL UVA 252 µW/cm² Solarmeter 6.5 (UVI, post 2010) 4.72 UV-Index Solarmeter 6.2 (UVB, post 2010) 79.7 µW/cm² (Solarmeter Ratio = 16.9) Solarmeter AlGaN 6.5 UVI sensor 58.7 UV Index GenUV 7.1 UV-Index 3.23 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 4.71 W/m² Solarmeter 4.0 (UVA) 3.33 mW/cm² LS122 (manuf.) 0.000271 W/m² ISM400 (first guess) 2.07 W/m² LS122 (assumption) 0.0835 W/m² ISM400_new 1.59 W/m² Solarmeter 10.0 (Global Power) (assumption) 3.47 W/m²
(5d) Summary of my favourites
| UVC (0nm -280nm) [µW/cm] | 0.606 | 0.0812 % |
| non-terrestrial (0nm -290nm) [µW/cm] | 0.821 | 0.11 % |
| UVB (EU) (280nm -315nm) [µW/cm] | 69.5 | 9.31 % |
| UVB (US) (280nm -320nm) [µW/cm] | 105 | 14.1 % |
| Solar UVB (290nm -315nm) [µW/cm] | 69.3 | 9.28 % |
| UVA (EU) (315nm -380nm) [µW/cm] | 347 | 46.4 % |
| UVA (US) (320nm -380nm) [µW/cm] | 311 | 41.7 % |
| UVA2 (medical definition) (320nm -340nm) [µW/cm] | 147 | 19.6 % |
| UVA1 (medical) (340nm -400nm) [µW/cm] | 187 | 25 % |
| UVA D3 regulating (315nm -335nm) [µW/cm] | 143 | 19.2 % |
| vis. UVA (350nm -380nm) [µW/cm] | 99.6 | 13.3 % |
| VIS (380nm -780nm) [µW/cm] | 329 | 44.1 % |
| blue (420nm -490nm) [µW/cm] | 115 | 15.4 % |
| total2 (250nm -880nm) [µW/cm] | 746 | 100 % |
| Erythema [UV-Index] | 5.15 | |
| Luminosity [lx] | 676 | |
| Blue Light Hazard [µW/cm²] | 122 | 180µW/cm/1000lx |
| Solarmeter 6.5 (UVI, post 2010) [UV-Index] | 4.72 | |
| Solarmeter 6.2 (UVB, post 2010) [µW/cm²] | 79.7 | |
| Actinic UV [µW/cm²] | 4.48 | 6.61 at UVI7.6 |
| Vitamin D3 [µW/cm²] | 20.4 | 30.1 at UVI7.6 |
