Spectrum 221: BSY1 Edit
DeleteMeasurement
| Brand |
Sylvania Sylvania http://www.sylvania-lamps.com/ |
|---|---|
| Lamp Product |
Activa 172 18W |
| Lamp ID |
BSY1 (02/2007) |
| Spectrometer | USB 2000 |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 1 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Maren
10/Jun/2010 ; updated:
Sarina Wunderlich
27/Feb/2011
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

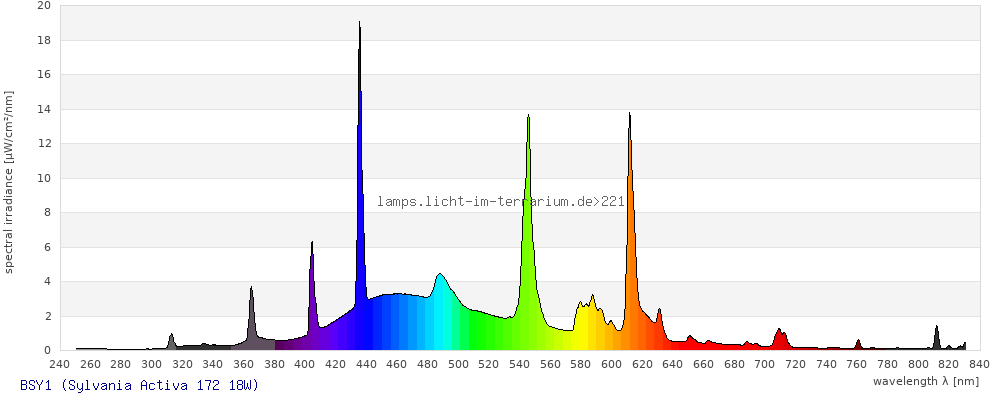

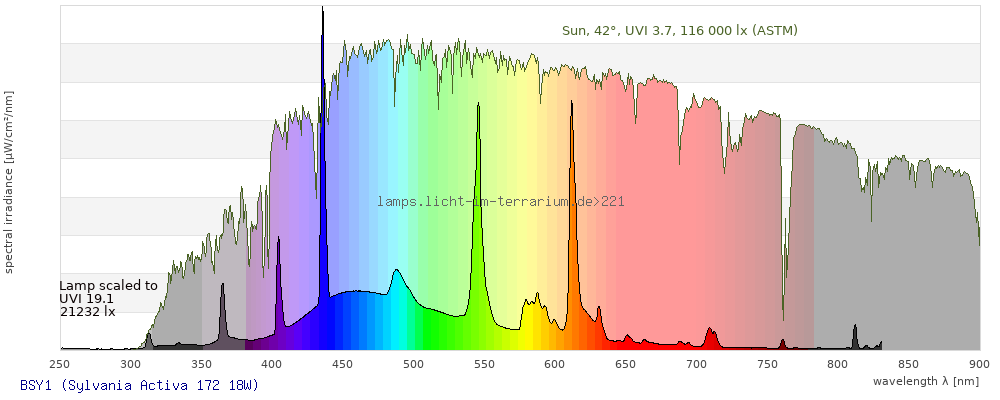

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.3 ; 0.3 ) | ( 0.39 ; 0.46 ) | ( 0.25 ; 0.29 ; 0.34 ) |
| CCT | 7800 Kelvin | 5200 Kelvin | 5700 Kelvin |
| distance | 0.12 | 0.093 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

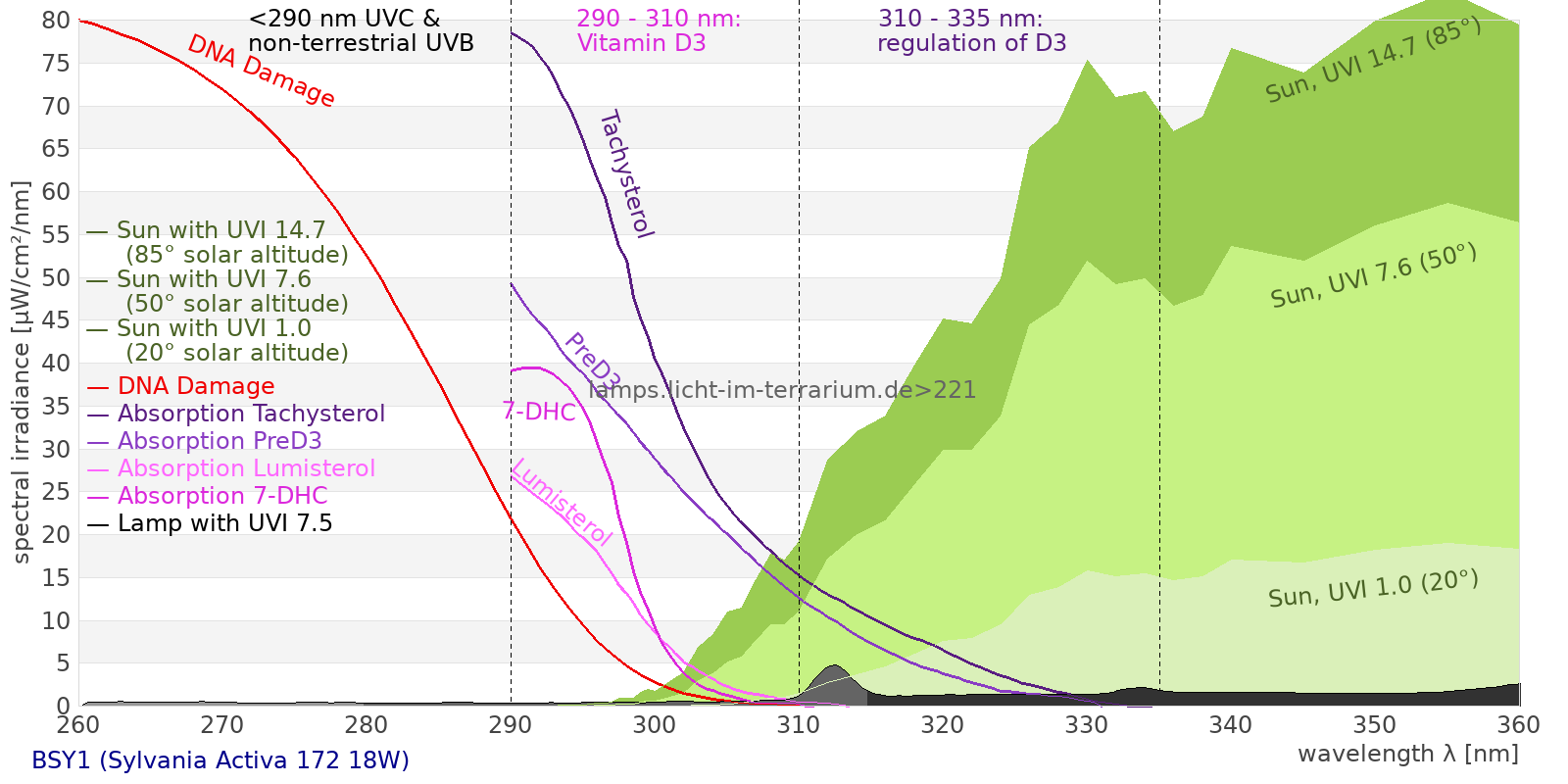

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

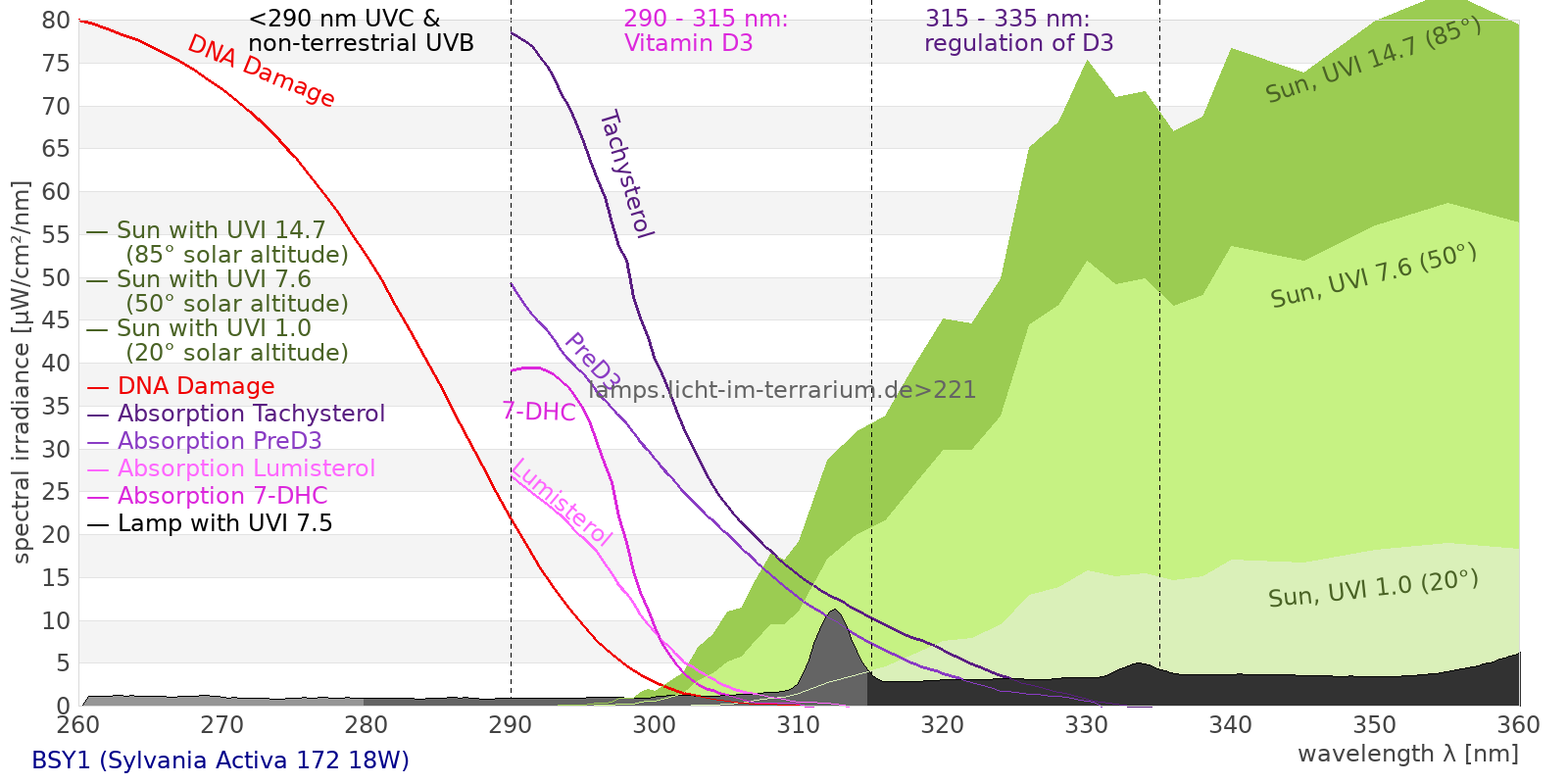

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 862 µW/cm² = 8.62 W/m² UVC ( 0 nm - 280 nm) 3.02 µW/cm² = 0.0302 W/m² non-terrestrial ( 0 nm - 290 nm) 3.8 µW/cm² = 0.038 W/m² total2 ( 250 nm - 880 nm) 862 µW/cm² = 8.62 W/m² UVB (EU) ( 280 nm - 315 nm) 6.13 µW/cm² = 0.0613 W/m² UVB (US) ( 280 nm - 320 nm) 7.43 µW/cm² = 0.0743 W/m² UVA+B ( 280 nm - 380 nm) 43.7 µW/cm² = 0.437 W/m² Solar UVB ( 290 nm - 315 nm) 5.35 µW/cm² = 0.0535 W/m² UVA D3 regulating ( 315 nm - 335 nm) 5.79 µW/cm² = 0.0579 W/m² UVA (EU) ( 315 nm - 380 nm) 37.5 µW/cm² = 0.375 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 6.15 µW/cm² = 0.0615 W/m² UVA (US) ( 320 nm - 380 nm) 36.2 µW/cm² = 0.362 W/m² UVA1 (variant) ( 335 nm - 380 nm) 31.8 µW/cm² = 0.318 W/m² UVA1 (medical) ( 340 nm - 400 nm) 43.4 µW/cm² = 0.434 W/m² vis. UVA ( 350 nm - 380 nm) 27 µW/cm² = 0.27 W/m² VIS Rep3 ( 350 nm - 600 nm) 663 µW/cm² = 6.63 W/m² VIS Rep4 ( 350 nm - 700 nm) 810 µW/cm² = 8.1 W/m² purple ( 380 nm - 420 nm) 57 µW/cm² = 0.57 W/m² VIS ( 380 nm - 780 nm) 804 µW/cm² = 8.04 W/m² VIS2 ( 400 nm - 680 nm) 763 µW/cm² = 7.63 W/m² PAR ( 400 nm - 700 nm) 770 µW/cm² = 7.7 W/m² tmp ( 400 nm - 1100 nm) 802 µW/cm² = 8.02 W/m² blue ( 420 nm - 490 nm) 268 µW/cm² = 2.68 W/m² green ( 490 nm - 575 nm) 252 µW/cm² = 2.52 W/m² yellow ( 575 nm - 585 nm) 25.9 µW/cm² = 0.259 W/m² orange ( 585 nm - 650 nm) 159 µW/cm² = 1.59 W/m² red ( 650 nm - 780 nm) 42.6 µW/cm² = 0.426 W/m² IRA ( 700 nm - 1400 nm) 31.9 µW/cm² = 0.319 W/m² IR2 ( 720 nm - 1100 nm) 20.1 µW/cm² = 0.201 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 2.03 UV-Index Pyrimidine dimerization of DNA 2.79 µW/cm² Photoceratitis 2.24 µW/cm² Photoconjunctivitis 2.78 µW/cm² DNA Damage 3.24 Vitamin D3 2.76 µW/cm² Photosynthesis 541 µW/cm² Luminosity 2250 lx Human L-Cone 332 µW/cm² Human M-Cone 288 µW/cm² Human S-Cone 217 µW/cm² CIE X 304 µW/cm² CIE Y 311 µW/cm² CIE Z 404 µW/cm² PAR 3520000 mol photons Extinction preD3 38.2 e-3*m²/mol Extinction Tachysterol 93.3 e-3*m²/mol Exctincition PreD3 32700 m²/mol Extinction Lumisterol 28.2 m²/mol Exctincition Tachysterol 118000 m²/mol Extinction 7DHC 33.4 m²/mol L-Cone 270 µW/cm² M-Cone 316 µW/cm² S-Cone 369 µW/cm² U-Cone 121 µW/cm² UVR - ICNIRP 2004 3.36 Rel Biol Eff Melatonin Supression 303 µW/cm² Blue Light Hazard 243 µW/cm² (108 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 2.82 µW/cm² Lumen Reptil 2470 "pseudo-lx" Vitamin D3 Degradation 2.51 µW/cm² Actinic UV 3.34 µW/cm² (14.9 mW/klm) Exctincition Lumisterol 30400 m²/mol Exctincition 7DHC 35000 m²/mol Exctincition Toxisterols 14000 m²/mol
